![]() F312 1" |
![]() F312 2" |

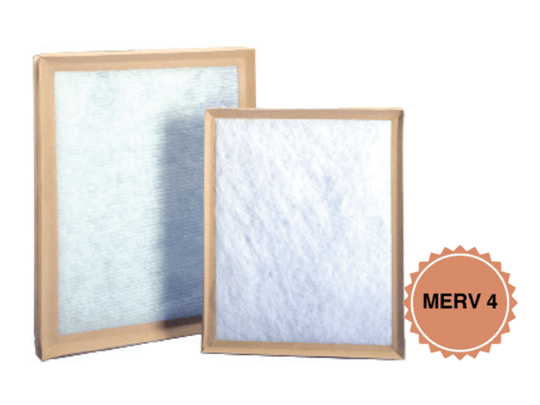

![]() P312 1" |
![]() P312 2" |

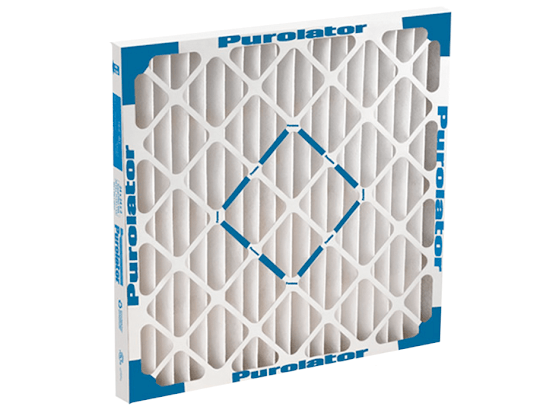

![]() Hi-E 40 1" |
![]() Hi-E 40 2" |
![]() Hi-E 40 4" |
![]() Key Pleat 1" |
![]() Key Pleat 2" |
![]() Key Pleat 4" |
![]() DMK 80 1" |
![]() DMK 80 2" |
![]() DMK 80 4" |
![]() PAF 11 1" |
![]() PAF 11 2" |
![]() PAF 11 4" |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Show All | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove | Remove |
MERV Rating | MERV 4 | MERV 4 | MERV 4 | MERV 4 | MERV 8 | MERV 8 | MERV 8 | MERV 8 | MERV 8 | MERV 8 | MERV 8 | MERV 8 | MERV 8 | MERV 11 | MERV 11 | MERV 11 |
Media | Fiberglass | Fiberglass | Polyester | Polyester | 100% Synthetic | 100% Synthetic | 100% Synthetic | 100% Synthetic | 100% Synthetic | 100% Synthetic | 100% Synthetic | 100% Synthetic | 100% Synthetic | Synthetic Hydrophobic | Synthetic Hydrophobic | Synthetic Hydrophobic |
Pleat or Panel | Panel | Panel | Panel | Panel | Pleated | Pleated | Pleated | Pleated | Pleated | Pleated | Pleated | Pleated | Pleated | Pleated | Pleated | Pleated |
Pleat Count | N/A | N/A | N/A | N/A | 12.0 | 10.0 | 9.0 | 12.0 | 10.2 | 11.3 | 14.0 | 15.0 | 11.0 | 14.0 | 15.0 | 11.0 |
Structure | Compressed Media | Compressed Media | N/A | N/A | Galv. Steel Grid | Galv. Steel Grid | Galv. Steel Grid | Beverage Board | Beverage Board | Beverage Board | Galv. Steel Grid | Galv. Steel Grid | Galv. Steel Grid | Galv. Steel Grid | Galv. Steel Grid | Galv. Steel Grid |
Frame | Cardboard Pinch Frame | Cardboard Pinch Frame | Cardboard Pinch Frame | Cardboard Pinch Frame | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board | Beverage Board |
Airflow | ||||||||||||||||
Air Velocity | 300 FPM | 300 FPM | 300 FPM | 300 FPM | 300 FPM | 500 FPM | 500 FPM | 300 FPM | 500 FPM | 500 FPM | 300 FPM | 500 FPM | 500 FPM | 300 FPM | 500 FPM | 500 FPM |
Initial Resistance | .07" | .09" | .14" | .14" | .27" | .29" | .20" | .15" | .22" | .15" | .24" | .26" | .18" | .32" | .31" | .24" |
Max Final Resistance | 0.5" W.G. | 1.0" W.G. | 0.5" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. | 1.0" W.G. |
Max Operating Temp. | 150°F (65°C) | 150°F (65°C) | 200°F (93°C) | 200°F (93°C) | 225°F (107°C) | 225°F (107°C) | 225°F (107°C) | 150°F (65°C) | 150°F (65°C) | 150°F (65°C) | 225°F (107°C) | 225°F (107°C) | 225°F (107°C) | 200°F (93°C) | 200°F (93°C) | 200°F (93°C) |
Nominal Size | ||||||||||||||||
Actual Size | ||||||||||||||||
Price per Filter | ||||||||||||||||
